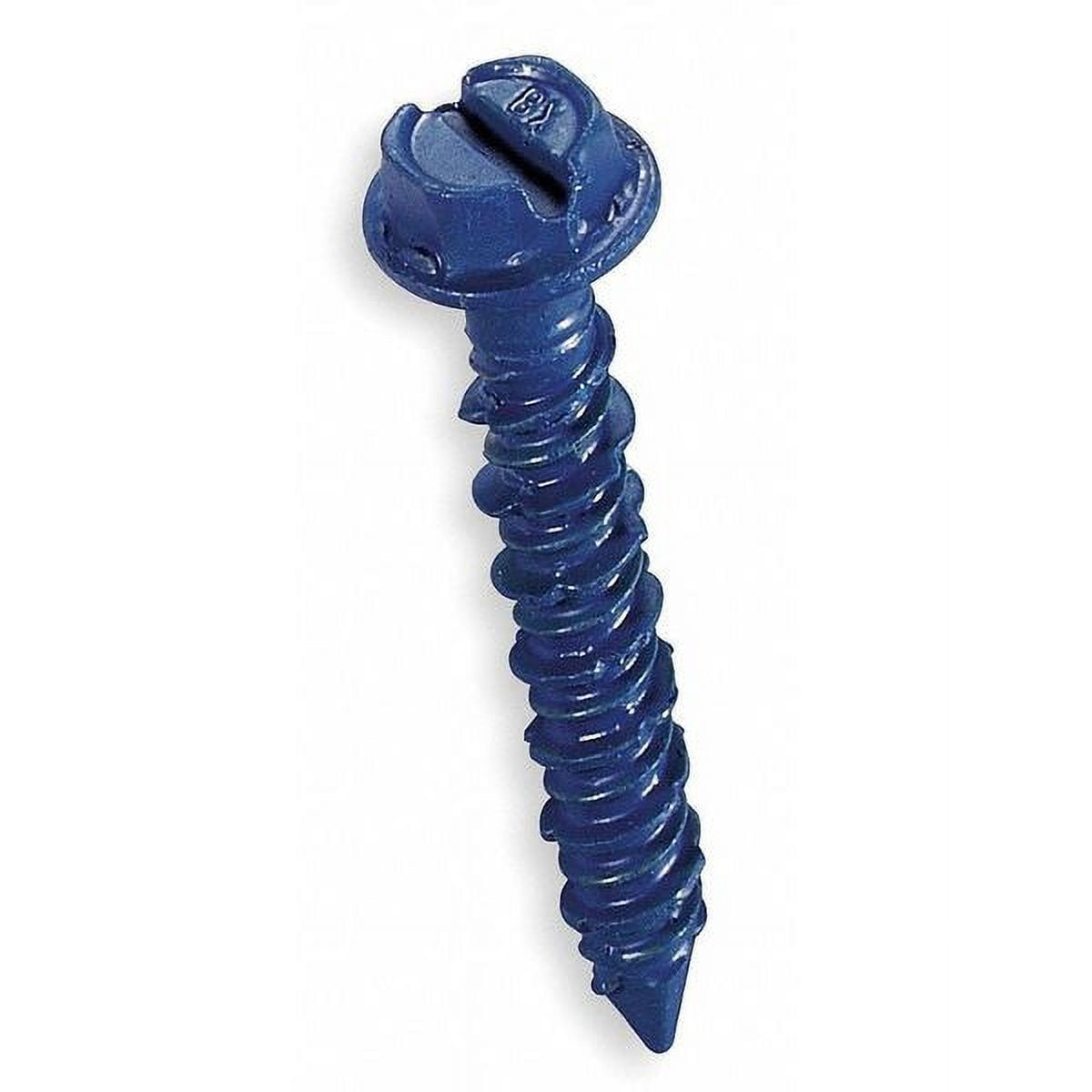

Tapcon Concrete Anchor Screw,Hex,3/16 in,PK100 3147407
Product details
| Management number | 238404370 | Release Date | 2026/07/11 | List Price | US$23.53 | Model Number | 238404370 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Concrete Anchor Screw, Anchor Diameter 3/16 in, Overall Length 3 1/4 in, Head Type Hex, Head Width 0.25 in, Head Diameter Not Applicable, Drive Type External Hex, Material Steel, Material Grade/Class Low, Removable Removable, Compatible Material Block, Brick, Concrete, Drill Bit Size 5/32 in, Screw Anchor Type Concrete Screw Anchor, System of Measurement Inch, Maximum Material Thickness 2 1/4 in, Maximum Ultimate Shear Strength 860 lb, Maximum Ultimate Tension Strength 800 lb This item is banned in the following states: PR
- Anchor Diameter:3/16"
- Body Length:3 1/4 in
- Compatible Material:Concrete; Wood
- Drill Bit Size:5/32 in
- Drive Type:External Hex
- Edge Distance:1 in
- Head Type:Hex
- Head Width:0.25 in
- ICC Approved for Cracked Concrete:No
- ICC Approved for Un-Cracked Concrete:Yes
- Industry Standards:ICC-ESR-1671, ICC-ESR-2202
- Item:Masonry Screw
- Manufacturer Location:Made in USA
- Material Grade/Class:Low
- Material Grade:Low Carbon Steel
- Material Quality Standards:ASTM B117
- Material:Steel
- Maximum Material Thickness:2 1/4 in
- Maximum Ultimate Shear Strength:860 lb
- Maximum Ultimate Tension Strength:800 lb
- Minimum Installation Depth:1 in
- Minimum Ultimate Shear Strength:720 lb
- Minimum Ultimate Tension Strength:600 lb
- Overall Length:3 1/4 in
- Removable:Removable
- Screw Anchor Type:Concrete Screw Anchor
- Seismic Approved:No
- Series:Tapcon
- Sub-Brand:Tapcon
- System of Measurement:Inch
- Thread Length:3 1/4 in
- Tip Type:Self-Threading
- Type:Masonry
- Ultimate Shear Strength (4,000 psi Concrete):720 lb
- Ultimate Tension Strength (4,000 psi Concrete):650 lb
| Hardware anchor type | Concrete |
|---|---|
| Rec. use | Concrete |
| Installation type | Screw-In |
| Material | Stainless Steel |
| Finish | Blue Climaseal |
| Brand | Tapcon |
| Features | Easy Installation |
| Color | Multi |
| Count | 1 |
| Dimensions | 5.80 x 4.60 x 3.10 in |
| Model | 3147407 |
| Has written warranty | No |
