4X GRT8-M1 On Off Time Delay Relay 16A AC/DC12V-240V Multifunction Din Rail Automatic Timer Relay

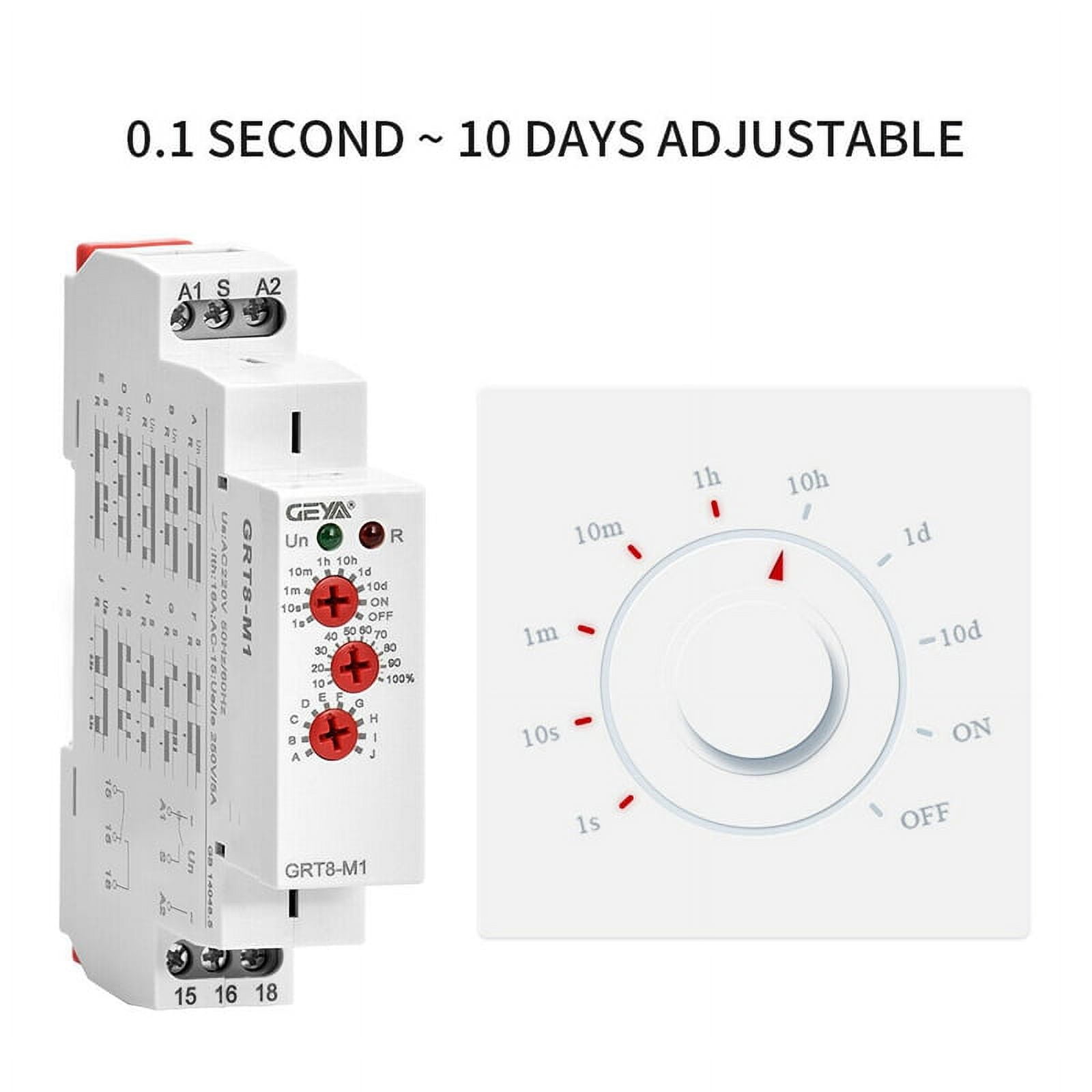

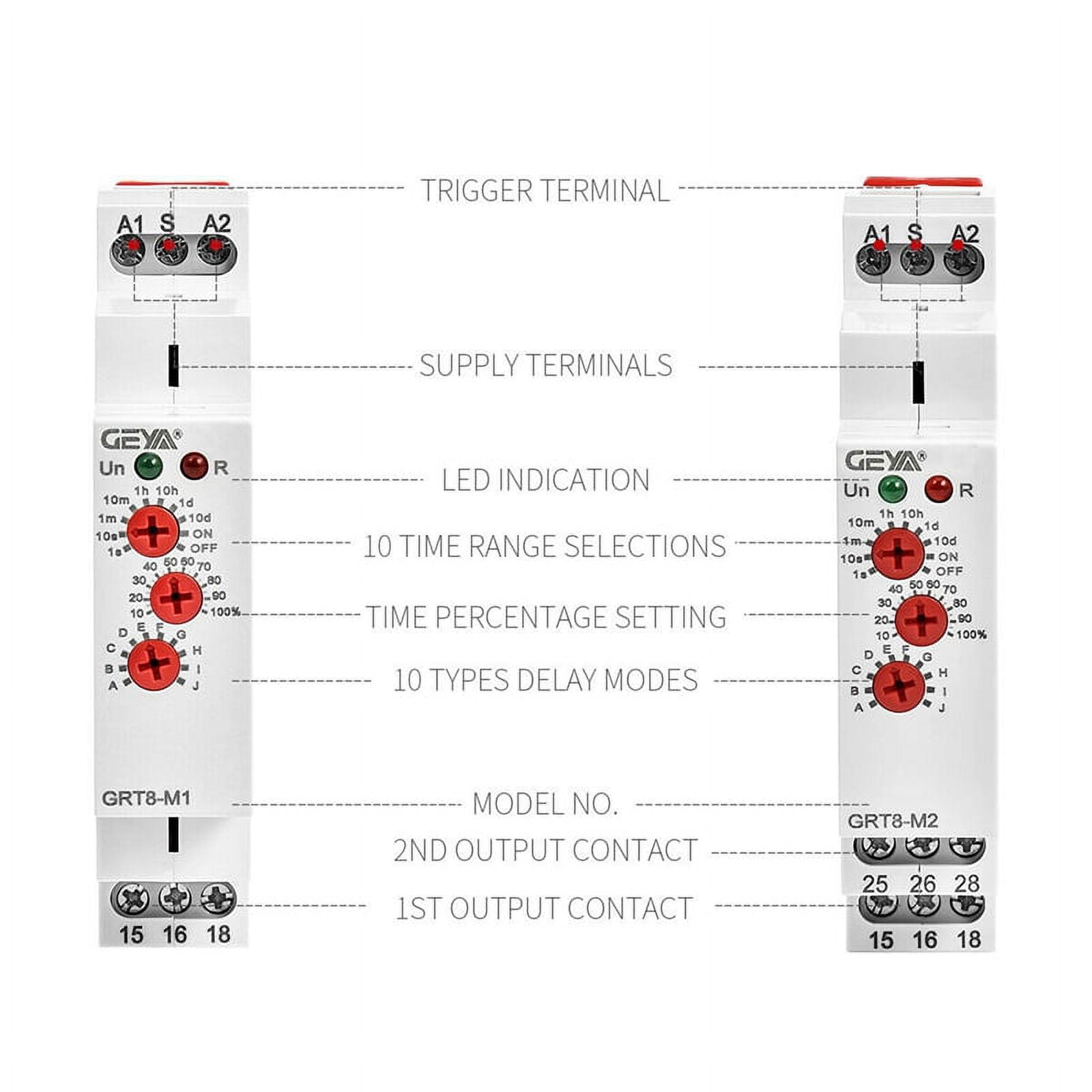

Comfortable and well-arranged function and time-range setting by rotary switches.<br>Time scale: 0.1 s - 10 days divided into 10 ranges.<br>0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off<br>Relay status is indicated by LED.<br>1-MODULE,DIN rail mounting.<br>color: White<br>Material: ABS<br><br>Package Contents:<br>4 x Timer Relay<br>4 x DIN rail mounting<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Applications: Multi-function time relay can be used for electrical appliances, control of lights, heating, motors,pumps and fans (10 functions, 10 time ranges, multi-voltage).

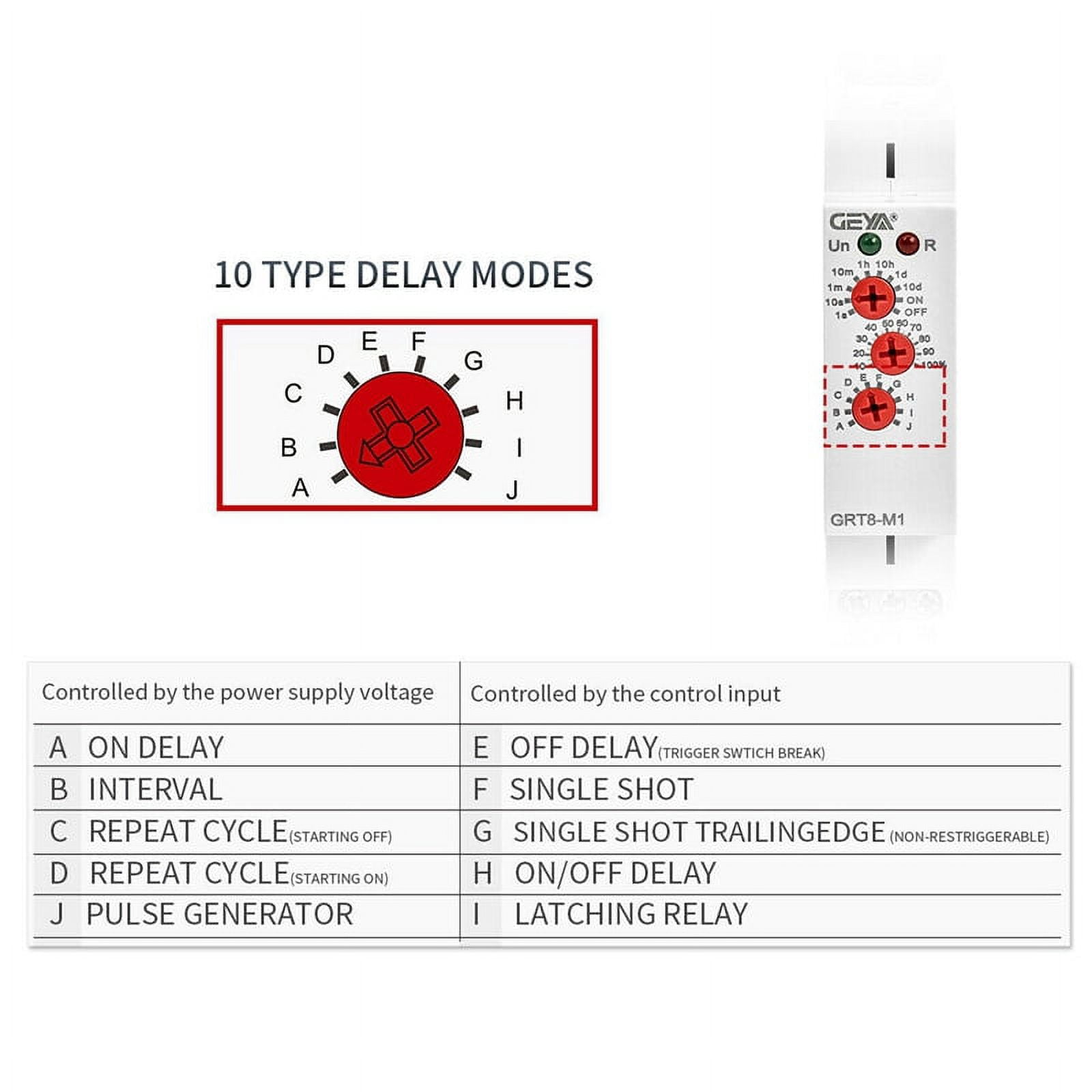

• 10 functions:
• 5 time functions controlled by supply voltage
• 4 time functions controlled by control input
• 1 function of latching relay
